TURNKEY SOLUTIONS Water treatment and distribution for communities Water Filtration and Disinfection Water Softening and Demineralization Ultra-filtration and Reverse Osmosis system Sewage Treatment, conditioning and recycling Industrial waste water treatment for variety of Industries.

ADVANCED BIOLOGICAL TREATMENT SYSTEMS OFFERED BY US Moving Bed Bio Reactor (MBBR) Sequencing Batch Reactor (SBR) Continuous Batch Bio Reactor (CBBR) Membrane Bio Reactor (MBR) Microbial Anaerobic Baffled Reactor (MABR)

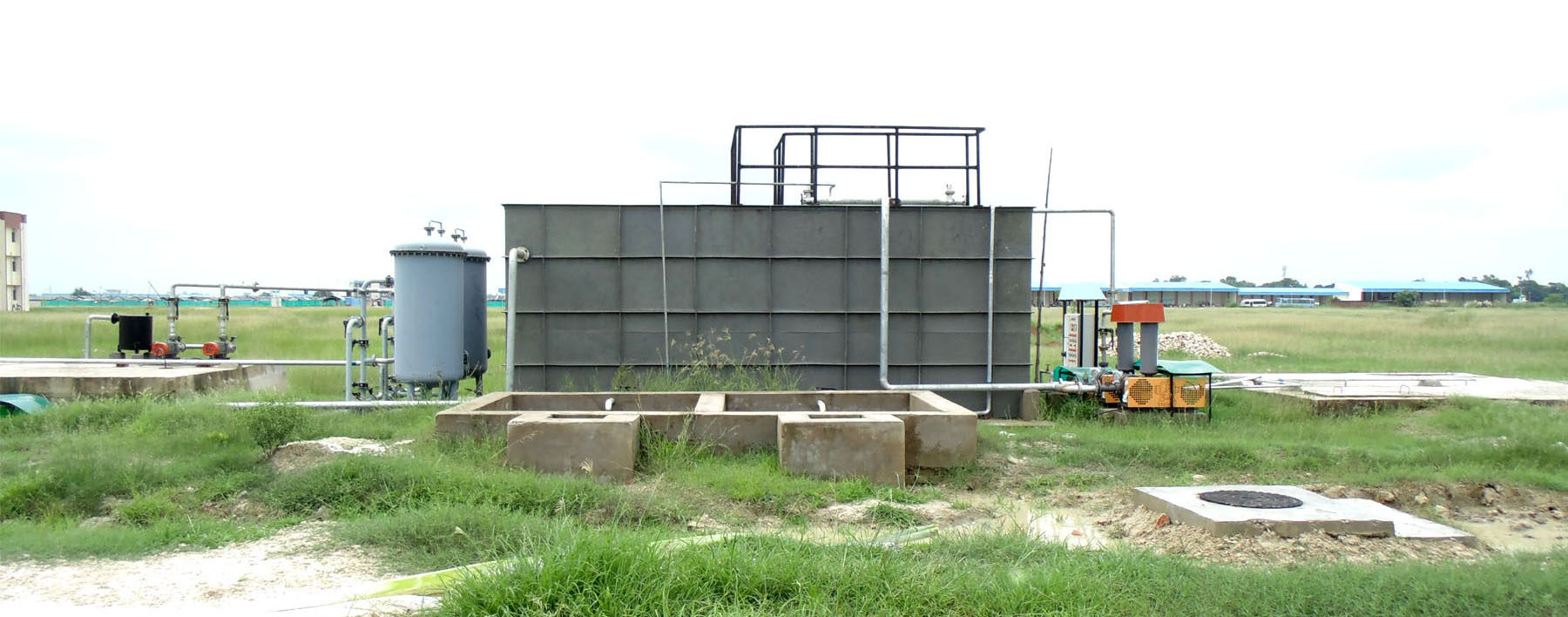

PACKAGED SEWAGE TREATMENT PLANT: These plants are pre-fabricated in FRP construction, ready to install and use. It is ideal to treat sewage from a single Households to Restaurants, Hotels, Schools, Shopping mall, Resorts and other smaller facilities. Capacity up to 50 kld is readily available. Treated effluent can be used in gardening.

MBBR PROCESS: It is basically an attached growth aerobic process which includes a reactor tank filled up with small biomass carrier elements called bio-media. The elements are specially developed from Polypropylene/ Polystyrene of controlled density and having very large surface area. MBBR process is ideal to treat waste water from small Housing development projects, Hotels, Hospitals and Industrial facilities.

FEATURES:
Smaller foot print and ability to handle shock loading.
High quality treated effluent.
Modular design is easily expandable to meet future growths.
Can be made functional even at 25% inflow of designed capacity.
Provide very large effective bio-film surface area where the treatment takes place.
Waste sludge production is very low.
Simple design, reliable and robust operational procedures.
Low maintenance and replacement cost. MBBR media made from polypropylene can be guaranteed for minimum 15 – 20 years life.

CBBR PROCESS: It combines the benefits of SBR and conventional Activated Sludge Process to produce a high quality treated effluent. The process offers reliability and simplicity of design in a single modular unit for small communities up to 2000 pe.

Salient Features:
Smaller foot print.
High quality treated effluent.
Waste sludge production is very low.
Modular design is easily expandable to meet future growths.
Simple design requiring no PLC based control and no moving decanter.


MICROBIAL ANAEROBIC BAFFLED REACTOR:
The Treatment Process is based on Anaerobic Attached Growth Technology which is a state-of-the-art technology comprising of multi stage anaerobic chambers filled with BIO-DEK media to achieve a many times higher surface area within the reactor. This Technology gives reliable treatment efficiency particularly for treatment of low strength waste water such as domestic sewage. The Anaerobic reaction is further enhanced by adding the MICROBIAL CULTURE (EM) in the system. After the Anaerobic treatment, the effluent is oxidized using OZONE or Hydrogen Peroxide and finally it is polished by Pressure Filtration system. Suitable for the facilities where space is no constraint.
